- Model Number: 852D
- Brand Name: digisix
- Origin: Mainland China
- Certification: CE
- Unit Type: piece
- Package Weight: 3.6kg (7.94lb.)
- Package Size: 23cm x 33cm x 23cm (9.06in x 12.99in x 9.06in)
PACKAGE
Package 1
SAIKE 852D++ Hot air soldering station * 1
Package 2
SAIKE 852D++ Hot air soldering station * 1
Solder wire * 1
Iron tips * 5
Iron box rosin * 1
Suction-line * 2
Package 3
SAIKE 852D++ Hot air soldering station * 1
Solder wire * 1
Iron tips * 5
Iron tips cleaning box (with rosin) * 1
Suction-line * 2
Solder sucker * 1
Hot air gun heating core * 1
Soldering iron heating core * 1
Anti-static Straight Tweezers * 1
Anti-static Curved Tweezers * 1
Package 4
SAIKE 852D++ Hot air soldering station * 1
Hot air gun vertical bracket * 1
Package 5
SAIKE 852D++ Hot air soldering station * 1
Hot air gun vertical bracket * 1
Solder wire * 1
Iron tips * 5
Iron box rosin * 1
Suction-line * 2
Package 6

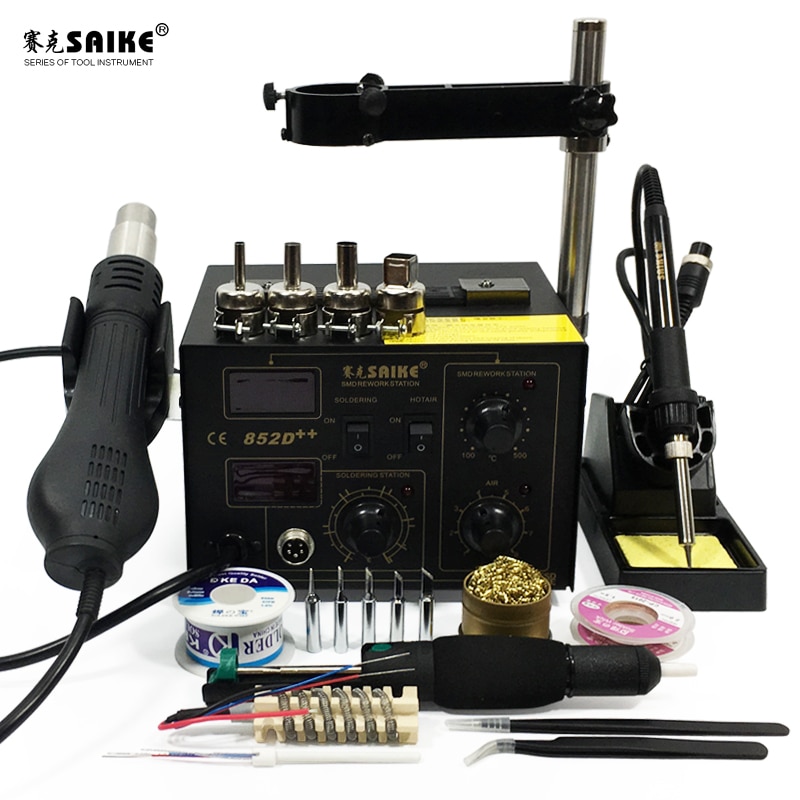

SAIKE 852D++ Hot air soldering station * 1
Hot air gun vertical bracket * 1
Solder wire * 1
Iron tips * 5
Iron tips cleaning box (with rosin) * 1
Suction-line * 2
Solder sucker * 1
Hot air gun heating core * 1
Soldering iron heating core * 1
Anti-static Straight Tweezers * 1
Anti-static Curved Tweezers * 1
Features
852D + + is based on the 852D + circuit board performance, structure and packaging optimized, more stable and reliable electrical properties, circuit structure and packaging structure more reliable.
As required, you can install an air gun fixed support which well suits the preheat board. Therefore, you can easily dismantle the large chip.
1. Use the microcomputer processor PID program control technology. The procedure tracks the air gun and the iron actual temperature by highly speed take the millisecond as the unit, the mysterious temperature compensation speed strengthen the temperature stability, the temperature static error has been small, temperature compensation is very quickly,which could adapt each kind of adverse circumstance.
2. Air gun heater using the latest technology(skeleton type), high-quality heater production, significantly improved the stability and reliability and significantly improve avoid to shocking and anti-strike (traditional techniques use quartz glass, can not afford to drop and re-shock, in the transport and use of the pro- cess is very easy to damage), and working life is much longer than the traditional type.
3. The handle equipped with a sensor switch, as long as we grip the handle, the system can quickly enter working mode; handle back into the handle frame, the system will enter standby mode, easy to operate in real time, meanwhile can extend heater life.
4. Use brushless fan as the air source,extremely long life, low- oise.
5. The iron part use high quality heating element, rapid heating and long service life; Antistatic design, to prevent electrostatic damage to the delicate SMD components.
Parameters
|
Model |
852D++ |
|
Type |
LED digital display |
|
Input voltage |
220V/50Hz(110V/60Hz) |
|
Power consumption |
700W |
|
Hot air |
|
|
Working voltage |
AC220V/50HZ(AC110V/60Hz) |
|
Display form |
LED digital (resolution 1°) |
|
Heating element |
Skeleton type ceramic heating core |
|
Temperature range |
100°－480° |
|
Type of air flow |
Brushless fan soft wind |
|
Temperature stability |
±1° |
|
Gas flow |
120 L/min(max) |
|
Noise |
Less than 45dB |
|
Handle length |
About 100cm(Including handle line) |
|
Soldering iron |
|
|
Working voltage |
AC 24V 50/60HZ |
|
Display form |
LED digital (resolution 1°) |
|
Temperature range |
200°－480° |
|
Heating element |
A1322 ceramic heating core |
|
Temperature stability |
±2°(no load) |
|
Handle length |
About 100cm(Including handle line) |
Application
1. Suitable for a various kind of soldering or desoldering (removals) purposes of the electronic components such as: SOIC, CHIP, QFP, PLCC, BGA,SMD, etc. (especially mobile phone's cable).
2. Shrinking, drying Paint drying, adhesive removal, thawing, warming, Plastic welding.
'
